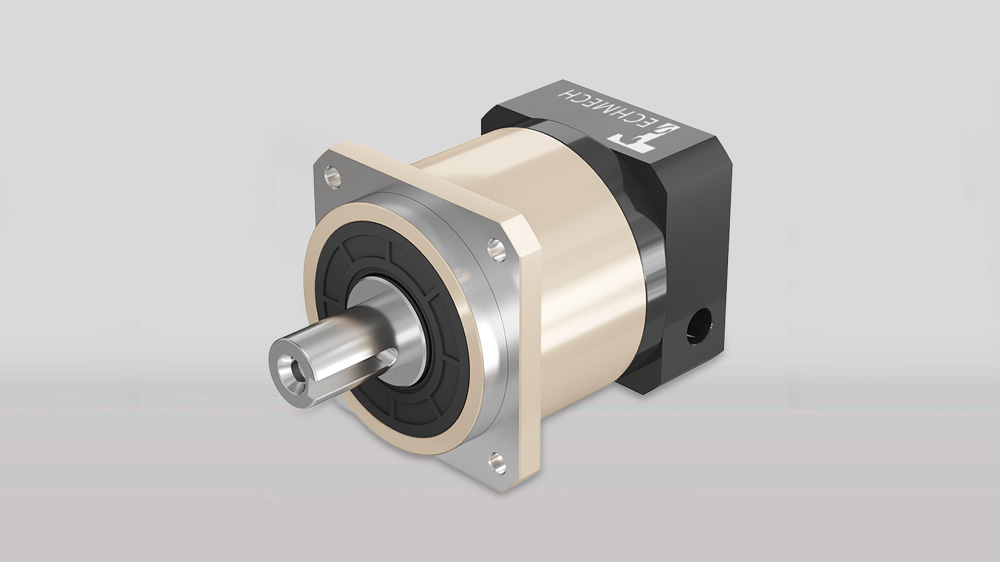

产品名称：精密行星减速机

产品系列：TCBK系列

性能特征 Performance Characteristic

●输出端尺寸 Output size:60-140mm

●速比 Speed ratio:3/4/5/7/9/10,15-100

●最小背隙 Minimum back clearance:

  单节(One Stage)≤3弧分(Arcminute)  双节(Two Stage) ≤5弧分(Arcminute)

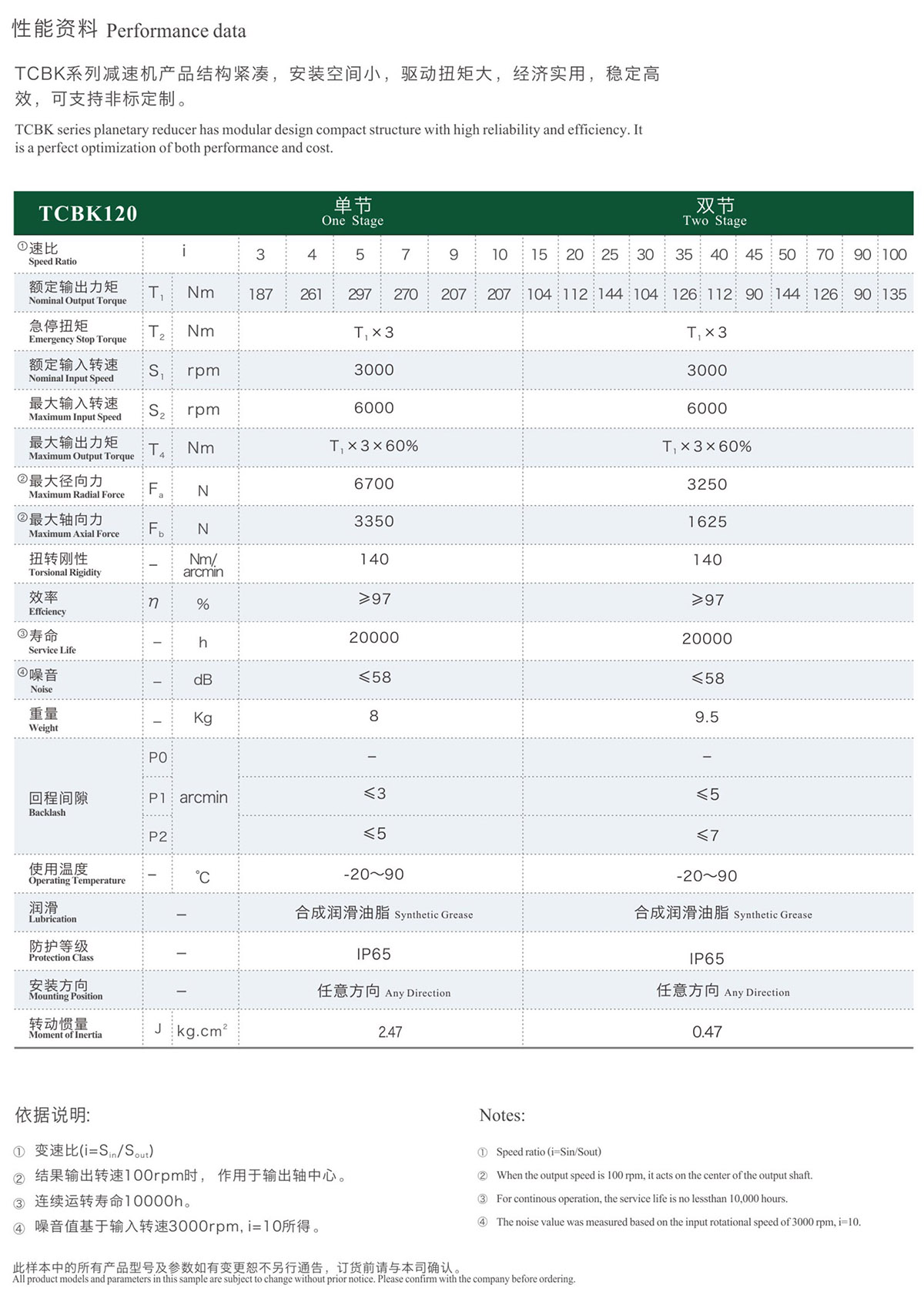

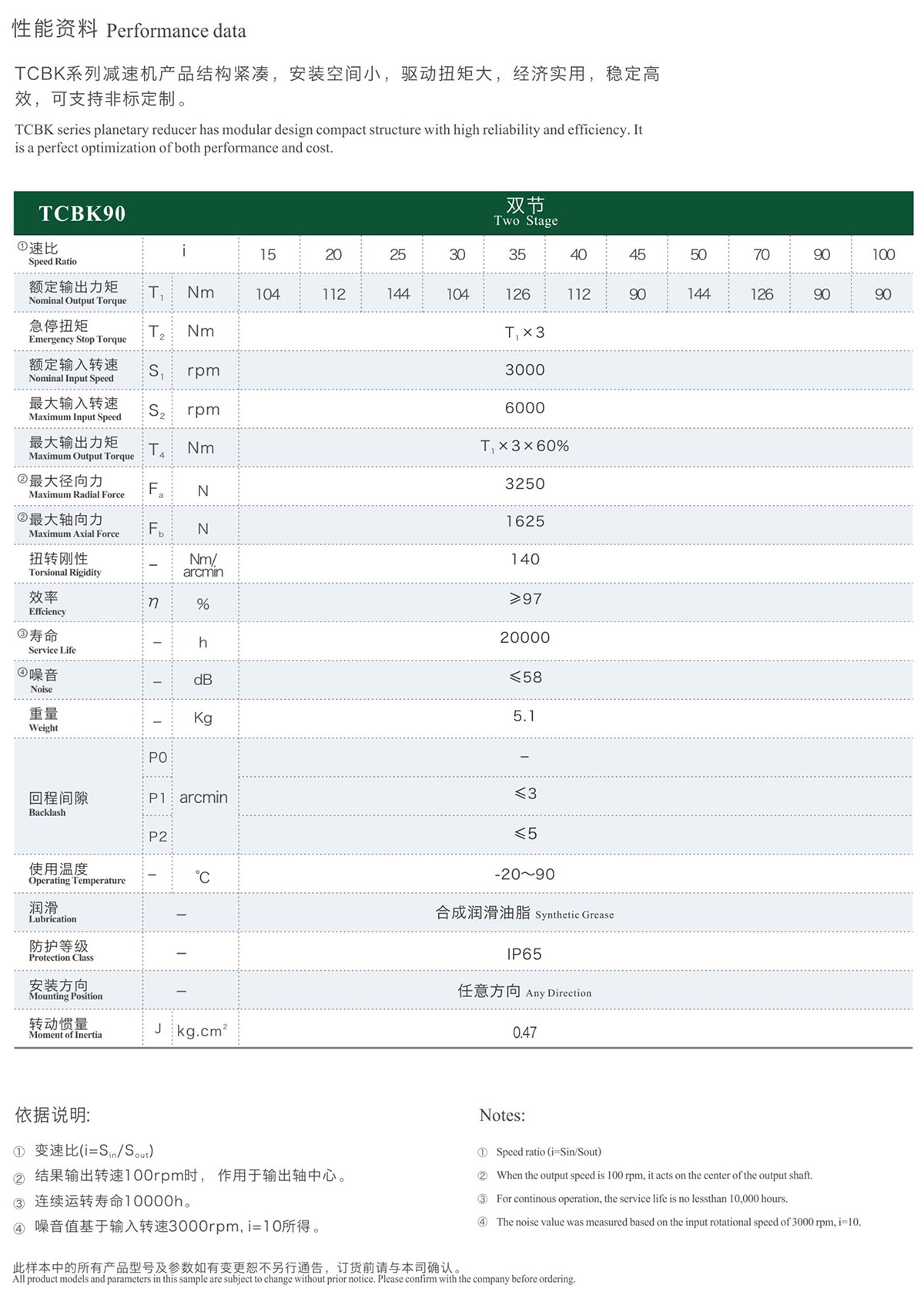

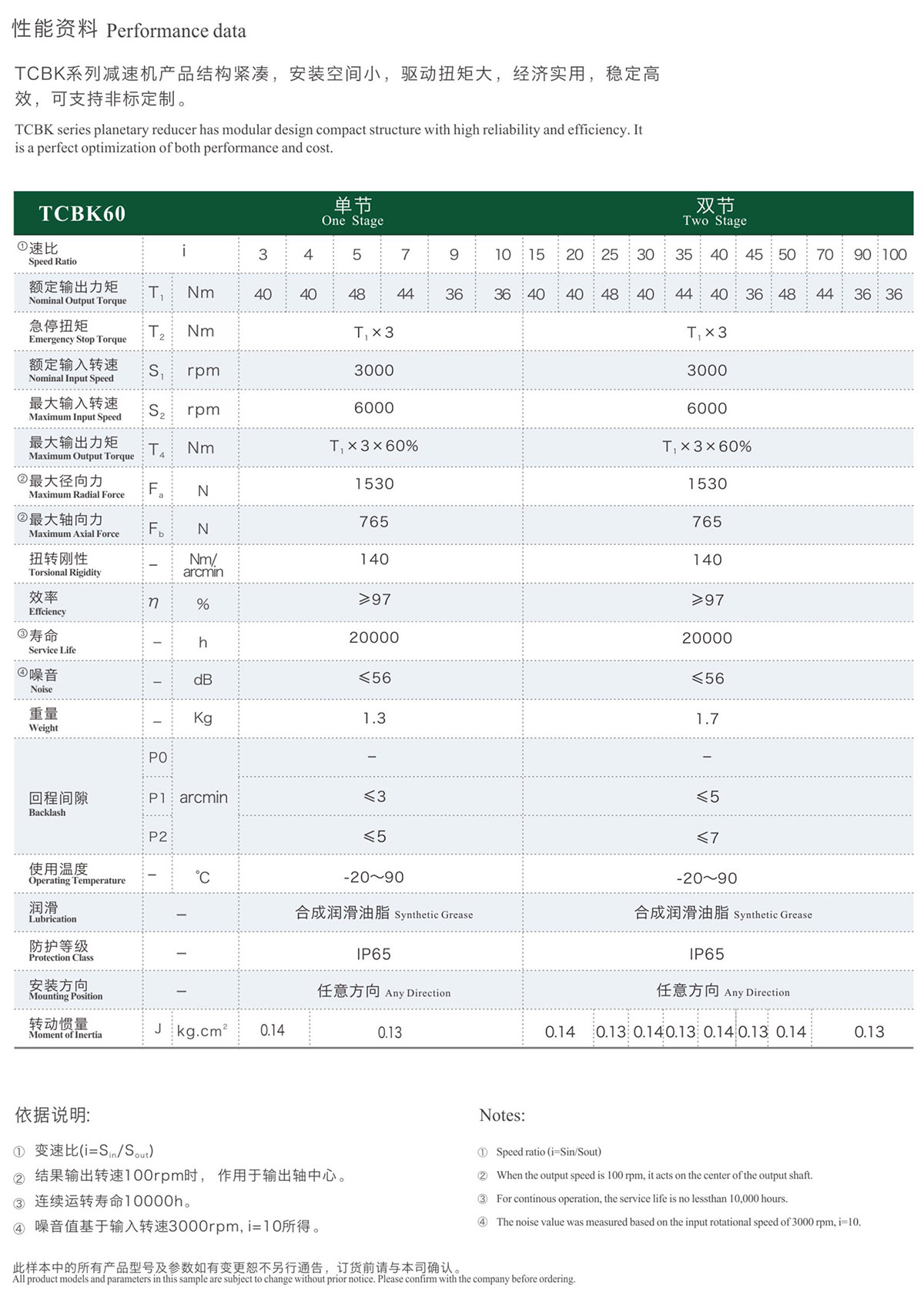

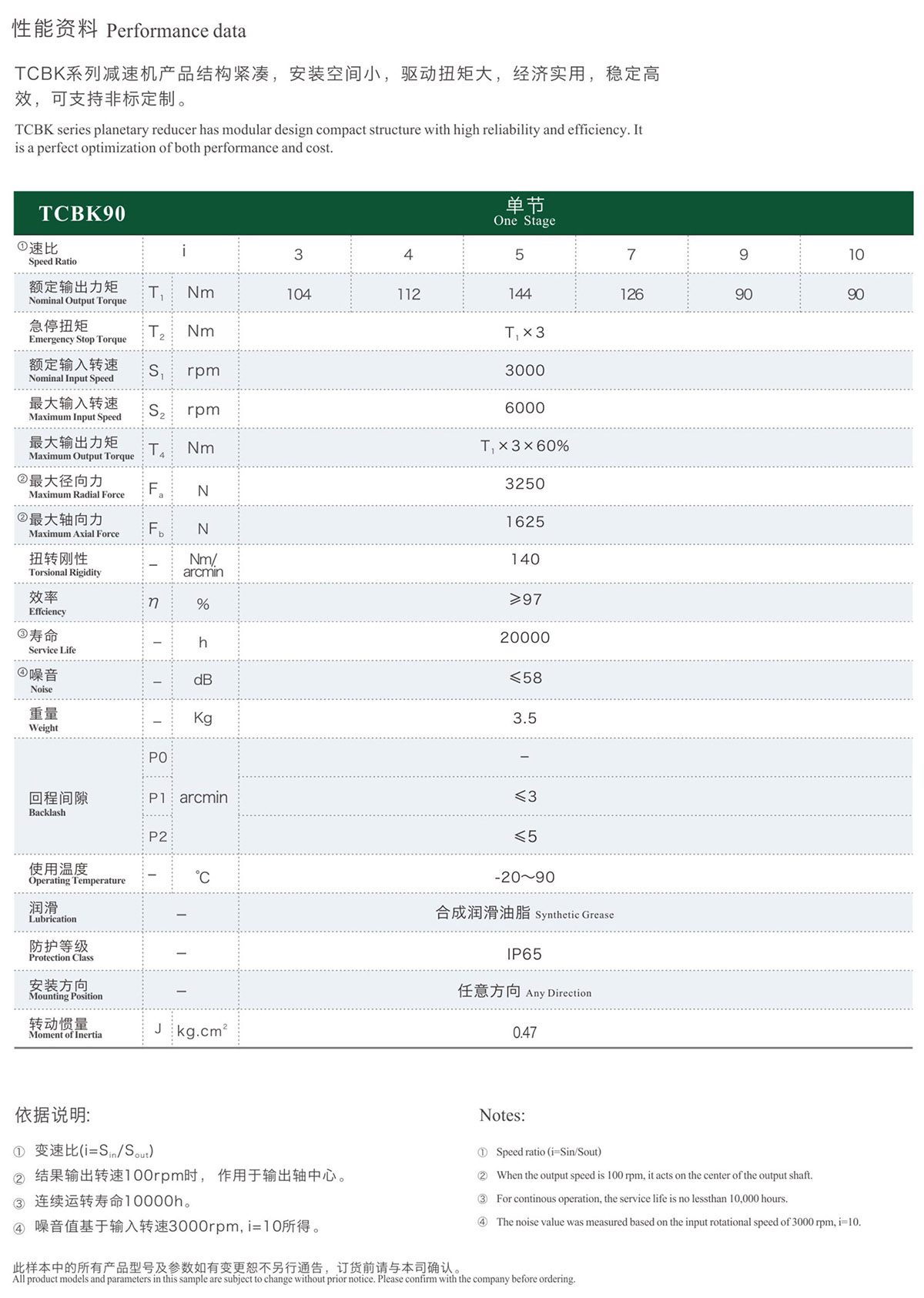

性能资料 Performance Data

TCBK系列减速机产品结构紧凑，安装空间小，驱动扭矩大，经济实用，稳定高效，可支持非标定制。

TCBK series planetary reducer backlash is low and its transmission capacity is strong.

the input end can be matched with servo, stepping and any other motors.
