产品名称：精密行星减速机

产品系列：TCB系列

性能特征 Performance Characteristic

●输出端尺寸 Output size:42-180mm

●速比 Speed ratio: 3/4/5/6/7/8/10,15-100

●最小背隙 Minimum back clearance:

  单节(One Stage)≤1弧分(Arcminute)双节(Two Stage) ≤3弧分(Arcminute)

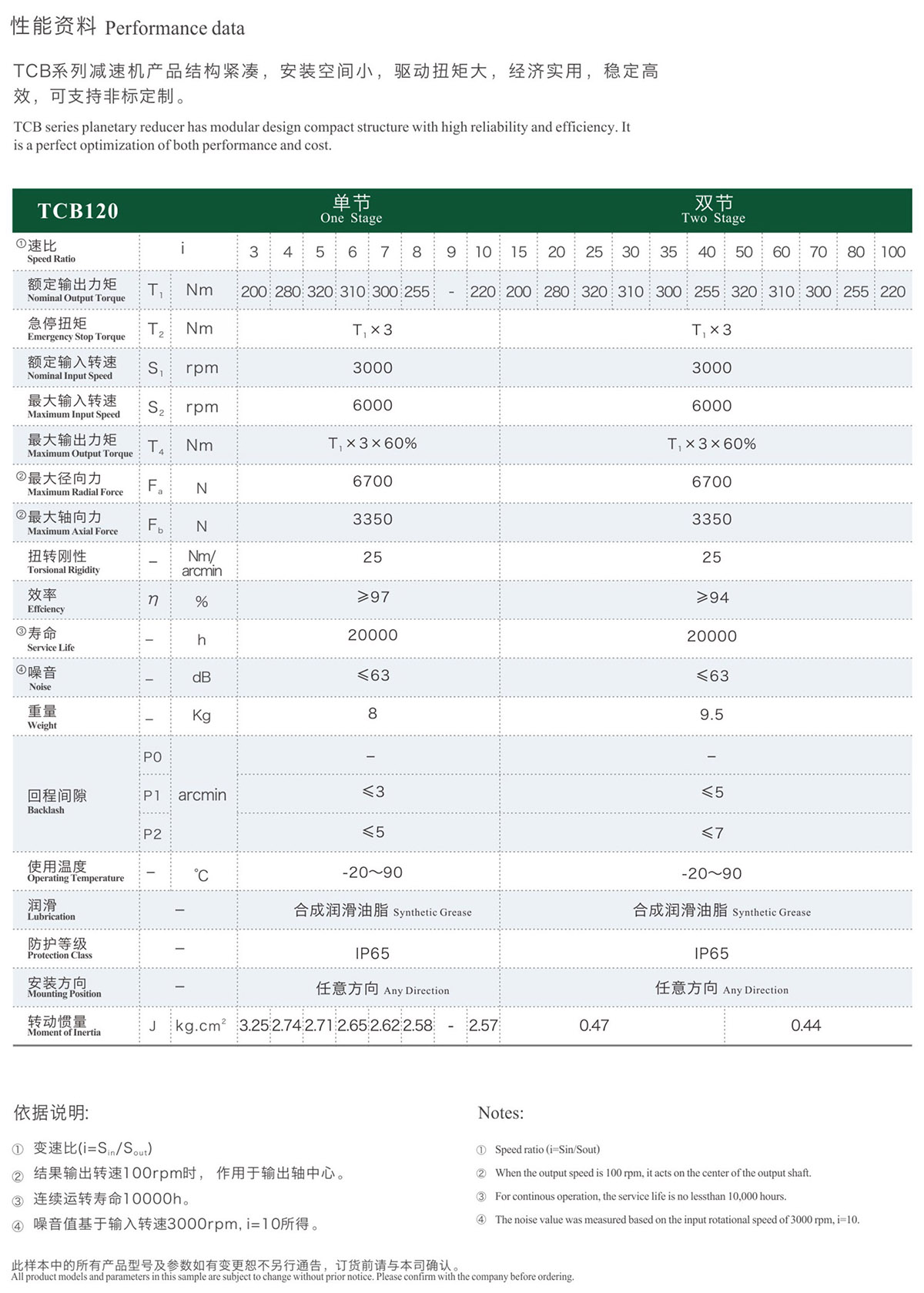

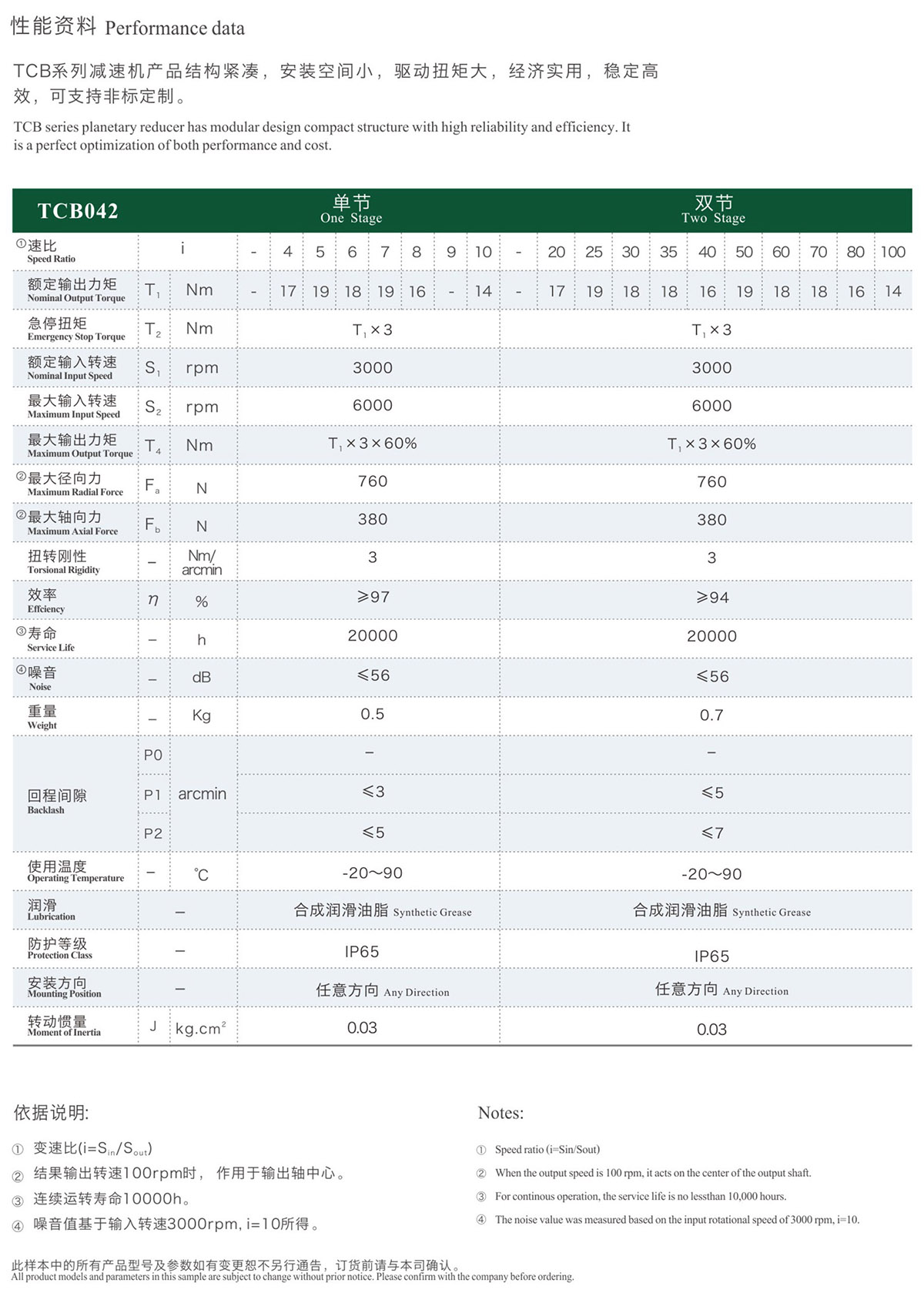

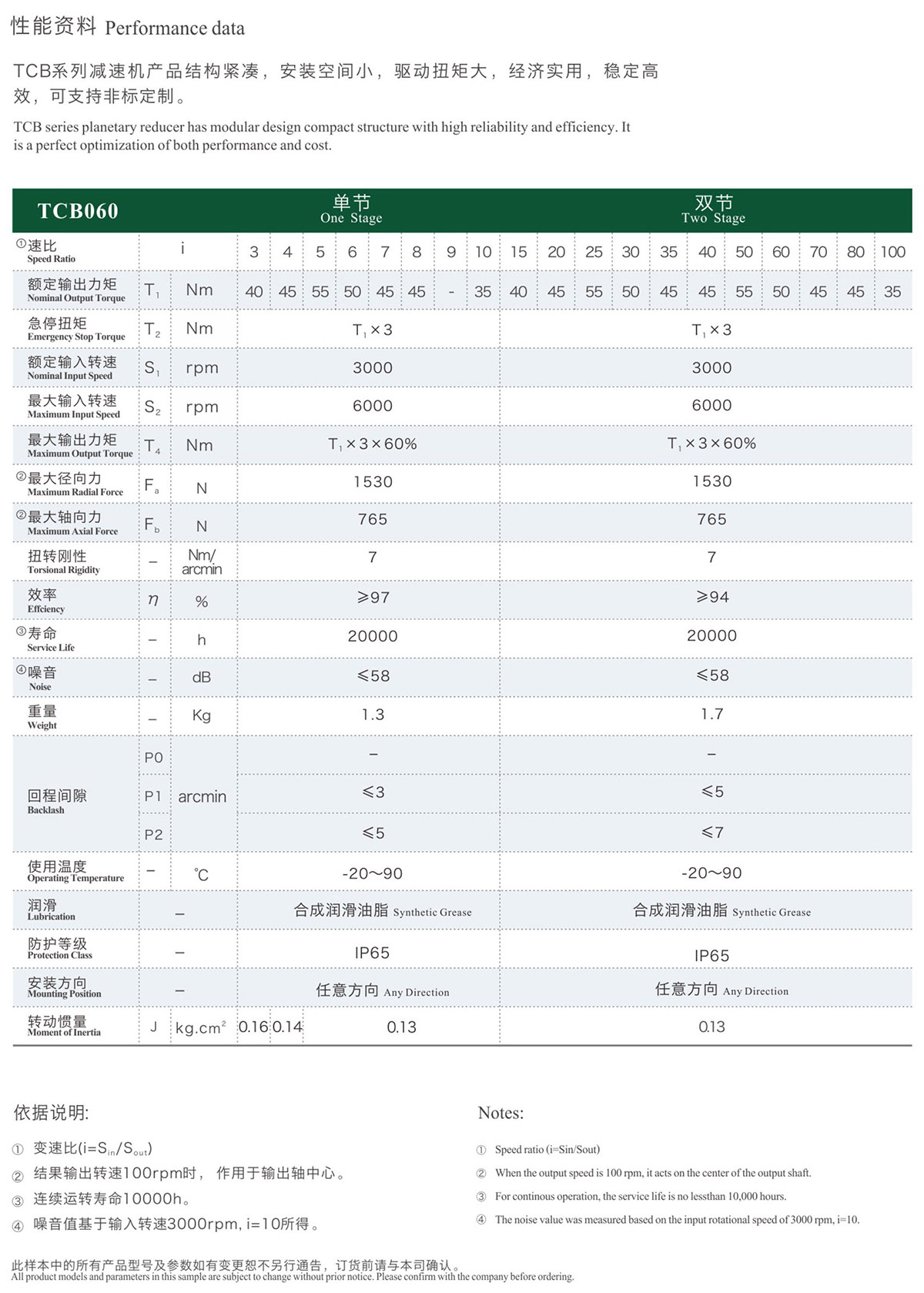

性能资料 Performance Data

TCB系列减速机产品结构紧凑，安装空间小，驱动扭矩大，经济实用，稳定高效，可支持非标定制。

TCB series planetary reducer backlash is low and its transmission capacity is strong.the input end can be matched with servo, stepping and any other motors.
